From $7.41

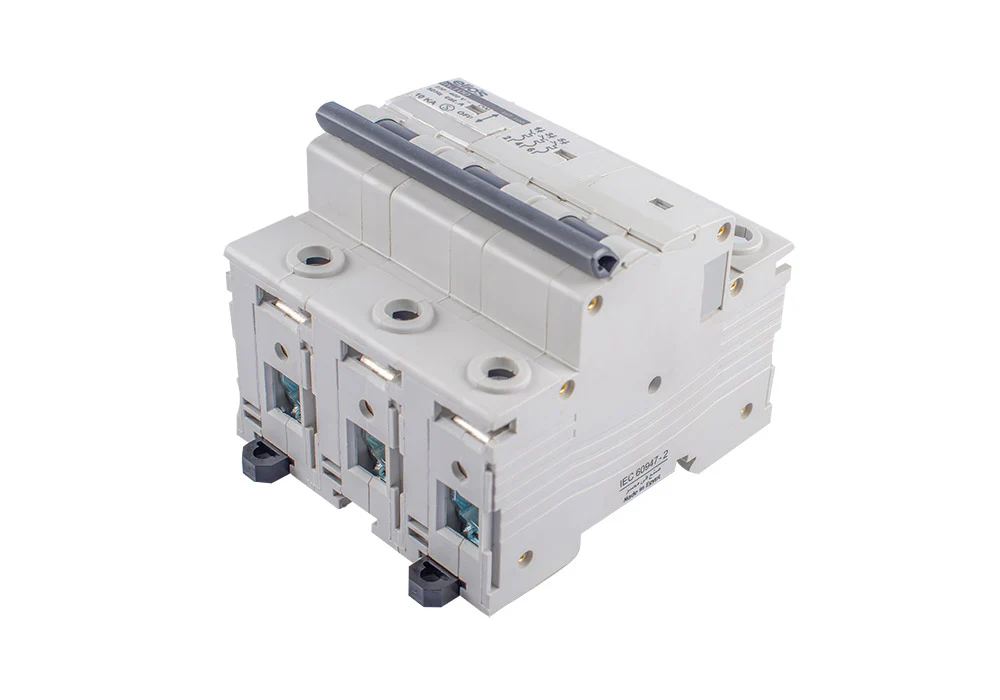

Miniature Circuit Breaker (3) Poles—
$7.41
The Story
- POLE NO.: 3
- RATED VOLTAGE: AC 400/230V
- RATED CURRENT (A): 32.40.50.63.100
- TRIPPING CURVE : B, C, D
- RATED SHORT - CIRCUIT CAPACITY (ICN) : 6000A
- RATED FREQUENCY: 50/60Hz
- ENERGY LIMITING CLASS: 3
- RATED IMPULSE WITH STAND VOLTAGE: 6.2Kv
- ELECTRO – MECHANICAL ENDURANCE: 4000
- CONTACT POSITION INDICATION CONNECTION TERMINAL:• Screw terminal • Pillar terminal with clamp
- CONNECTION CAPACITY: Rigid conductor up to 25mm
- FASTENING TORQUE: 2.0 Nm
- INSTALLATION: • On symmetrical DIN rail 35mm • Panel mounting
Description
- POLE NO.: 3
- RATED VOLTAGE: AC 400/230V
- RATED CURRENT (A): 32.40.50.63.100
- TRIPPING CURVE : B, C, D
- RATED SHORT - CIRCUIT CAPACITY (ICN) : 6000A
- RATED FREQUENCY: 50/60Hz
- ENERGY LIMITING CLASS: 3
- RATED IMPULSE WITH STAND VOLTAGE: 6.2Kv
- ELECTRO – MECHANICAL ENDURANCE: 4000
- CONTACT POSITION INDICATION CONNECTION TERMINAL:• Screw terminal • Pillar terminal with clamp
- CONNECTION CAPACITY: Rigid conductor up to 25mm
- FASTENING TORQUE: 2.0 Nm
- INSTALLATION: • On symmetrical DIN rail 35mm • Panel mounting
